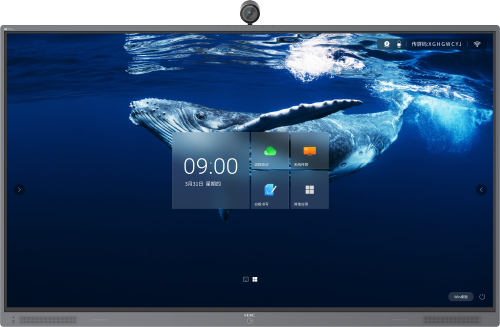

H3C 8K MagicHub (Model: S86I2C) Specifications
| Category | Parameter | Details |
|---|---|---|
| Overview | Brand | H3C |
| Product Name | H3C 8K MagicHub | |
| Model | S86I2C | |
| Display | Size | 86 inches |
| Backlight | D-LED | |
| Refresh Rate | 60Hz | |
| Resolution | 7680 × 4320 (8K) | |
| Brightness | ≥320 nit | |
| Viewing Angle | ≥178° | |
| Color Gamut | 85% NTSC (Typical) | |
| Anti-blue Light | Supported | |
| Glass | 3mm, hardness 7H, AG coating, ≥88% transmittance | |
| Lamination | Full lamination | |
| System | CPU | Intel Core i5 |
| RAM | 16GB | |
| Storage (ROM) | 512GB | |
| Touch | Touch Points | 20 points |
| Touch Height | 2.5mm | |
| Minimum Recognition | 2mm (90% center area) | |
| Writing Accuracy | ±1mm (90% center area) | |
| Camera (Optional) | Resolution | 4K |
| Field of View | ≥88° (diagonal) | |
| Features | Auto exposure, framing, WDR/HDR, backlight compensation | |
| Zoom | 4× digital | |
| Audio | Microphones | 8-array |
| Pickup Distance | 12m | |
| Pickup Angle | 180° (forward) | |
| Enhancements | Echo cancelation, noise reduction, beamforming, etc. | |
| Speakers | 15W × 2 | |
| Ports | Front USB | USB 3.0 ×1 |
| Side USB | USB 3.0 ×4, Type-C ×1 | |
| Ethernet | ×2 | |
| HDMI Input | 1× (4K@60Hz, annotation), 1× (8K@60Hz display only) | |
| HDMI Output | ×1 | |
| Audio Ports | LINE-IN ×1, LINE-OUT ×1 | |
| Touch Port | TOUCH OUT ×1 | |
| Connectivity | Wi-Fi Bands | 2.4GHz & 5GHz |
| Wi-Fi Standard | 802.11a/b/g/n/ac/ax (Wi-Fi 6) | |
| Physical | Dimensions | 1953.36 × 1180.48 mm |
| Package Size | 2160 × 1370 × 280 mm | |
| Net Weight | ≈65 kg | |
| Gross Weight | ≈75 kg | |
| Electrical | Input Voltage | 220V |
| Accessories | Included | Stylus ×2, Power cord |
| Optional | Camera, transmitter, wall/movable bracket | |
| Features | Bluetooth | BT 5.0 |
| Wireless Casting | Supported | |
| Miracast | Supported | |
| Wi-Fi 6 | Supported | |
| SoftAP | Supported | |
| Eye Protection | Supported | |
| HDR | Supported | |
| Auto Brightness | Supported | |
| Lip Sync | Supported | |
| Factory Reset | Supported |
