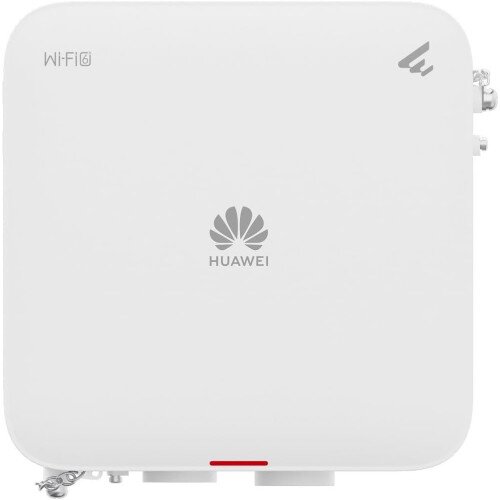

Huawei eKitEngine AP761 Wi-Fi 6 Wireless Access Point
Port type: 10M/100M/GE electrical port, SFP optical port
LED indicator: Indicate the power-on, startup, running, alarm, and fault states of the system
Power input: PoE power supply: in compliance with IEEE 802.3at/af
Maximum power consumption: 17.7 W
Operating temperature: –40°C to +65°C (From 1800 m to 5000 m, the maximum operating temperature of the device decreases by 1°C for every 300 m increase in altitude.)
Storage temperature: –40°C to +85°C
Operating humidity: 0%–100% IP rating: IP68
Altitude: –60 m to +5000 m
Atmospheric pressure: 53 kPa to 106 kPa
Antenna type: Built-in directional antennas
Antenna gain: 2.4 GHz: 10 dBi, 5 GHz: 11 dBi, BLE: 5 dBi
Maximum quantity of SSIDs on each radio: ≤ 16
Maximum number of STAs: ≤ 1024 (512/radio)
Maximum transmit power: 2.4 GHz: 28 dBm (combined power), 5 GHz: 27 dBm (combined power)
Power adjustment increment: 1 dBm
Maximum number of nonoverlapping channels: 2.4 GHz (2.412 GHz to 2.472 GHz), 802.11b/g , 20 MHz: 3 , 802.11n , 20 MHz: 3 , 40 MHz: 1 , 802.11ax , 20 MHz: 3 , 40 MHz: 1 , 5 GHz (5.18 GHz to 5.825 GHz) , 802.11a , 20 MHz: 13 , 802.11n , 20 MHz: 13
Huawei eKitEngine AP761 is an outdoor AP in compliance with the Wi-Fi 6 standard (802.11ax). It stands out with excellent outdoor coverage performance, IP68 waterproof and dustproof design, and strong surge protection capability. The AP provides uplink optical and electrical ports, allowing customers to select different deployment modes and saving customers' investment. These strengths make the AP ideal for high-density scenarios such as stadiums, squares, pedestrian streets, and amusement parks.
MU-MIMO
The AP supports MU-MIMO and supports a maximum of four spatial streams (two on the 2.4 GHz frequency band and two on the 5 GHz frequency band). The MU-MIMO technology enables an AP to send data to multiple STAs simultaneously, which doubles the radio spectrum resource usage, increases the number of access users and bandwidth, and improves user experience in high-density access scenarios.
High-speed access
The AP supports 80 MHz frequency bandwidth, which increases the number of available data subcarriers and expands transmission channels. In addition, the AP adopts 1024-QAM and MU-MIMO to achieve a rate of up to 0.575 Gbps on the 2.4 GHz band and 1.2 Gbps on the 5 GHz band, meaning up to 1.775 Gbps for the device.
