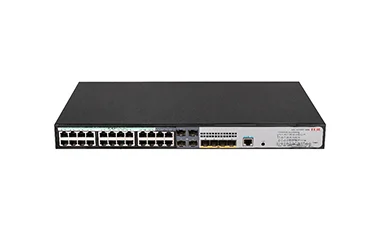

H3C S5120V3-28S-HPWR-LI L3 Ethernet Switch
H3C S5120V3-LI Ethernet switch product is independently developed by New H3C Technologies Co., Ltd. (H3C). It is a second-generation smart managed switch designed for network environments that require high performance, high port density, and easy installation.
This product is no longer available.
Specifications
| Switching capacity | 128Gbps |
| Forwarding capacity | 95.232Mpps |
| CPU | 1 Core, 800MHz |
| Flash/SDRAM | 256MB/512MB |
| Dimensions (WxDxH) | 440×260×43.6 mm |
| Weight | ≤ 4.5 kg |
| Management port | 1 console port |
| Networking interface | 24×10/100/1000TX+ 4×SFP combo + 4×SFP Plus |
| Maximum Stacking bandwidth | 80Gbps |
| Maximum stacking num | 9 |
| Port Surge | 6KV |
| Input voltage | AC: The rated voltage range is 100V to 240V, 50/60Hz |
| Total power consumption | MIN: AC: 16W MAX: AC: 445W (PoE 370W) |
| Fan number | 3 |
| MTBF(Year) | 52.81 |
| MTTR(Hour) | 1 |
| Operating temperature | -5℃ ~ 50℃(normal operating temperature), -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km), -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km) |
| Storage temperature | -40℃ ~ 70℃ |
| Relative humidity (non condensing) | 5% RH to 95% RH, non-condensing |
