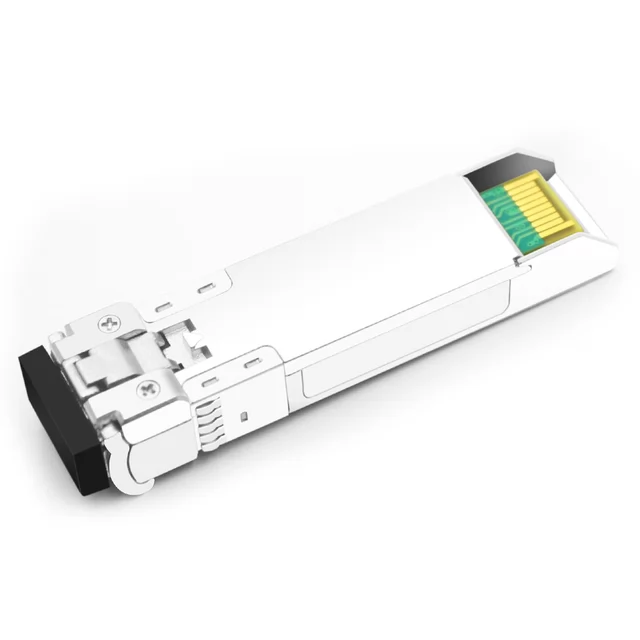

SFP-XG-SX-MM850-E SFP+ Module
The H3C SFP-XG-SX-MM850-E compatible SFP+ optical transceiver is equipped with an LC duplex connector, reaching a link up to 300m over OM3/OM4. QSFPTEK manufactured 10GBASE-SR SFP+ transceiver module is compliant with SFP+ MSA, IEEE 802.3ae, SFF-8472. Besides, DDM (digital diagnostics monitoring) function is supported on the 10G fiber optic transceiver to achieve real-time operating parameters monitoring. This 10G SFP+ transceiver caters to data center, campus network, the enterprise core layer and distribution layer, etc. It's also fully compatible with almost all H3C devices.
This product is no longer available.
Specifications
| Form Factor | SFP+ |
| Max Data Rate | 10.3125Gbps |
| Wavelength | 850nm |
| Max Cable Distance | 300m@OM4 |
| Connector | Duplex LC |
| Transmitter Type | VCSEL |
| Receiver Type | PIN |
| TX Power | -6.5~-0.5dBm |
| Receiver Sensitivity | < -11.1dBm |
| Modulation | NRZ |
| Protocols | IEEE 802.3ae, SFF-8472 |
| DDM | Supported |
